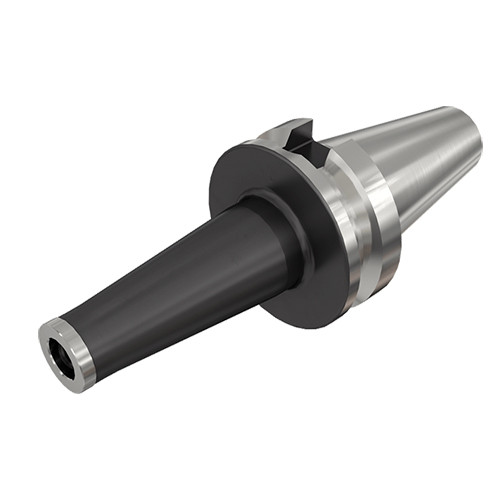

BT40ODP12X66

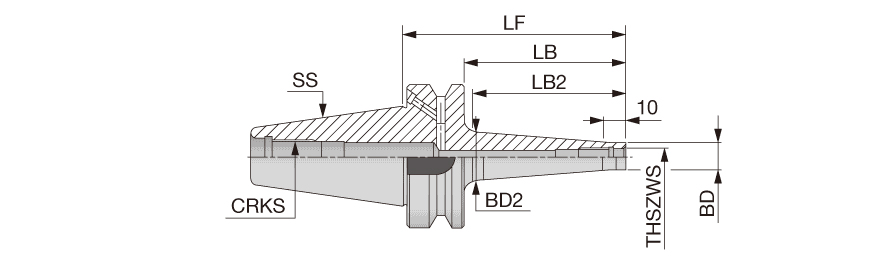

| Shank Size (SS) | 40. | Tool Type | BT |
| Body Length (LB) | 1.535″ | Nose Diameter | 5.173″ |
| Body Diameter (BD) | 0.827″ | Overall Length (OAL) | 2.598″ |
| Application | | Tapered shape interface | | Measurement Type | Inch |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Material | Steel |
| Body Length_2 (LB_2) | 1.181″ |
Product Features
| Family Description | TungFlex modular tooling system with BT shank | Country of Origin | ITALY |
Shipping Info
Package Weight
2.405
