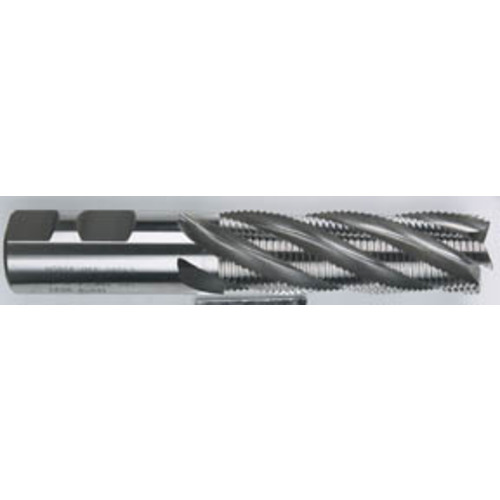

4614 3/4 × 3/4 4FL RUFF
SQ End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 5-1/4″ OAL ; 4 FL ; HSSCo ; Uncoated ; Series 4614
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 3/4″ | Application | Roughing |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 3″ | Length Group | Long |
| Overall Length (OAL) | 5-1/4″ | Flute Type | Fine Pitch |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Roughing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.75″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 4614 |
| Usable Length (LU) | 3″ |
Product Features
| Remarks | •M-42 8% Cobalt Fine Tooth Roughing End Mills •Center Cutting 30° Helix •TiCN Coating • TiCN coating has the same lubricity as TiN but is more than 30% harder • TiCN Coating is ideal for operating at aggressive feeds and speeds and for cutting extremely abrasive and difficult-to-cut materials. •Fine tooth spacing gives 30% better tool life •Pressure of cut is distributed over many teeth •Less friction/less wear - cutting speeds & feeds remain the same as conventional end mills •Better finish •Breakage and cracks are eliminated | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
5.50000
Package Width
.90000
Package Height
.90000
Package Weight
0.54
