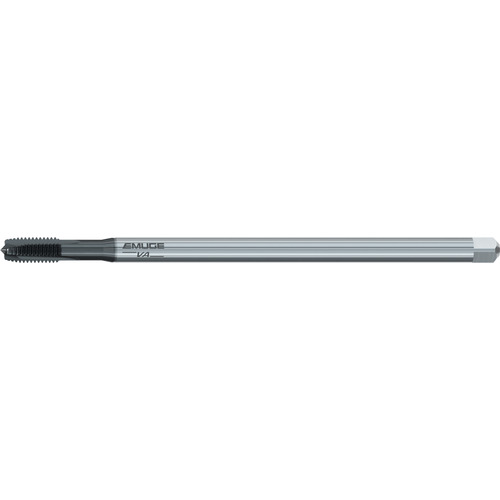

Extension Tap; M5 x0.8 mm × 140 mm ; HSSE ; Metric ; 6H
| Thread Diameter Size (TDZ) | M5 | Tool Type | Rekord B-VA |
| Thread Pitch (TP) | 0.8 mm | Standard | DIN |
| Thread Standard | Metric | Chamfer | 4P-5P |
| Overall Length (OAL) | 140 mm | Coating | TiAlN |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE | Flute Type | Spiral |
| Thread Tolerance Class (TCTR) | 6H | Series/List # | B220C300 |
Product Features
| Remarks | • Rekord B-VA LS design is for through & blind hole applications in stainless steel and steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.1
