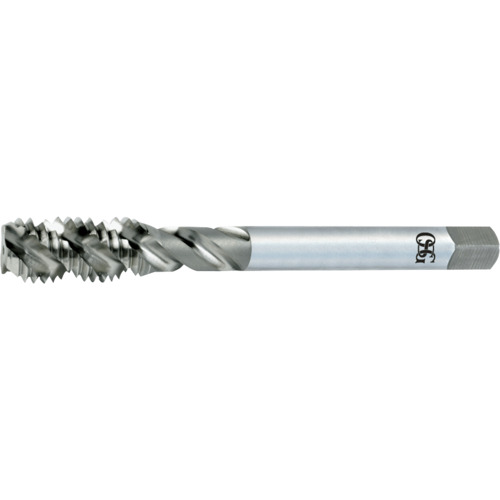

| Thread Diameter Size (TDZ) | 7/16″ | Tool Type | Extension Tap |
| Threads per Inch (TPI) | 14 | Chamfer | 1.5P-2P |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 6″ | End Shape | Chamfer |
| Usable Length (LU) | 1.708″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.322″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Flute Type | Spiral |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 918 |
| Cutting Edge Material | HSS | Thread Size | 7/16″ - 14 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Remarks | •Long Shank Spiral Flute Taps | Country of Origin | BR |
Shipping Info
Package Length
6.05000
Package Width
.85000
Package Height
.75000
Package Weight
0.15
