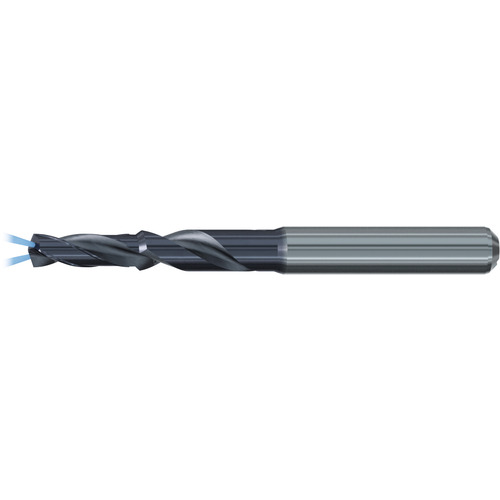

 EF-Drill C-STEEL-HA-IK-4FF-TIALN/(3D) EF-Drill C-STEEL-HA-IK-4FF-TIALN_Enlarge.jpg)
Carbide EF Step Drill; 5.5 mm Dia. × 8 mm Shank Size × 40 mm LCF × 79 mm OAL; TiAlN-T14; Coolant Thru
| Drill Bit Size / Cutting Diameter (DC) | 5.5 mm | Number of Steps | 1 |
| Decimal Equivalent | 0.2165 | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.5 mm | Coating | TiAlN |
| Cutting Diameter Minimum (DCN) | 5.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 40 mm | Measurement Type | Metric |
| Usable Length (LU) | 14 mm | Shank Standard | HA |
| Shank Size (SS) | 8 mm | Shank Type | Round |
| Overall Length (OAL) | 79 mm | Step Diameter Length (SDL) | 14 mm |
| Point Angle (SIG) | 140 Degrees | Tool Type | Carbide EF Step Drill |
| Flute Count (NOF) | 2 | Series/List # | EF-C Drill |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.055
