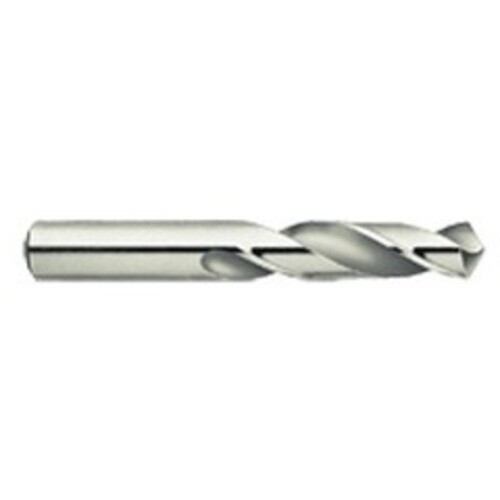

1435 15/64″ SM DRL HSS

Item # MT1415174

UNSPSC: 23241606

Brand: Morse Cutting Tools

MFG#: 15174

UPC #: 01020561 | 68612515174 | 686125151744

Additional Canadian Tariff of 25 %

Quantity Available

Virtual Catalog

Measurement Type

Inch

Cutting Edge Material

HSS

Drill Bit Size / Cutting Diameter (DC)

15/64″

Flute Length

‎1-5/16″

Drill Bit Size / Cutting Diameter (DC) - Inch

15/64″

Flute Type

Standard

Decimal Equivalent

0.2344

Overall Length (OAL)

‎2-7/16″

Angle

118 Degrees

Shank Type

Round

Shape

Screw Machine

Style

General Purpose

Coating

Uncoated

Point Shape

Standard Point

Cutting Depth

‎1-5/16″

Series/List #

1435

Product Features

Remarks

Screw Machine Length Drills• Developed primarily for use in screw machines, these short length drills provide maximum rigidity resulting in increased hole accuracy and extended tool life• Recommended for drilling a wide variety of materials including non-ferrous materials and low tensile strength steels• Bright Finish with polished flutes enhances chip ejection especially for aluminum and other non-ferrous materials.

Country of Origin

USA

Shipping Info

LocalField10

Package Length

2.50000

Package Width

.23000

Package Height

.23000

Package Weight

0.03
