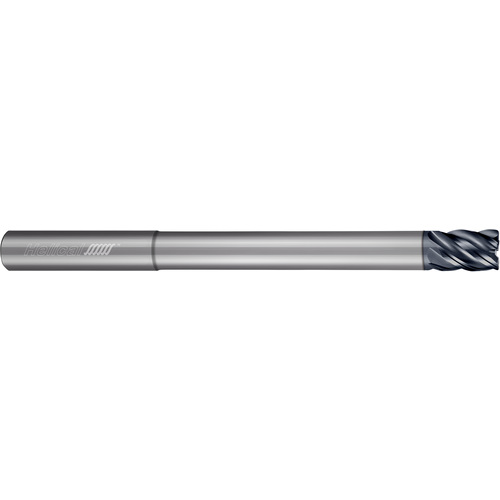

5 Flute - Corner Radius - 0.6250″ (5/8) Cutter DIA × 0.6250″ (5/8) Shank DIA × 0.0300″ Radius × 0.7500″ (3/4) LOC × 4.0000″ (4) OAL × 2.0000″ (2) Reach - APLUS Coated
| Cutting Diameter (DC) | 5/8″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Neck Diameter (DN) | 19/32″ |
| Overall Length (OAL) | 4″ | Neck Length (LN) | 1-1/4″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | AlTiN | Length Group | 3.2D |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.625″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Center Cutting | Yes |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.450
