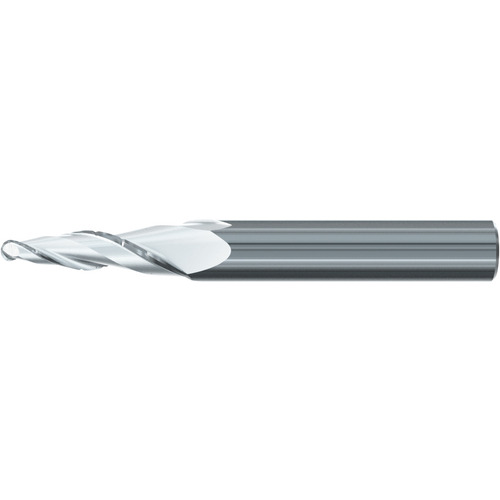

Tapered End Mills; 5.42 mm Dia. × 31 mm LOC × 8 mm Shank Dia. × 80 mm OAL; 2 FL; Carbide; Taper Ball Nose; Polished; Series 3447
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Body Half Taper Angle (BHTA) | 3 Degrees |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 5.42 mm | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 31 mm | End Shape | Taper Ball Nose |
| Flute Count (NOF) | 2 | Shank Type | Round |
| Corner Radius (RE) | 2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 80 mm | Style | Finisher |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Type | Taper Ball 3° |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | 3447 |
Product Features
| Remarks | • Turbine tapered carbide ball nose end mill for universal roughing and finishing applications in aluminum alloys and plastics • Design with two flutes in roughing/finishing profile and various taper angles • Ideal for pre-machining and finishing turbine components or other complex 5-axis components • Polished chip space avoids built-up edge formation and improves chip removal | Country of Origin | Germany |
Shipping Info
Package Weight
0.0902
