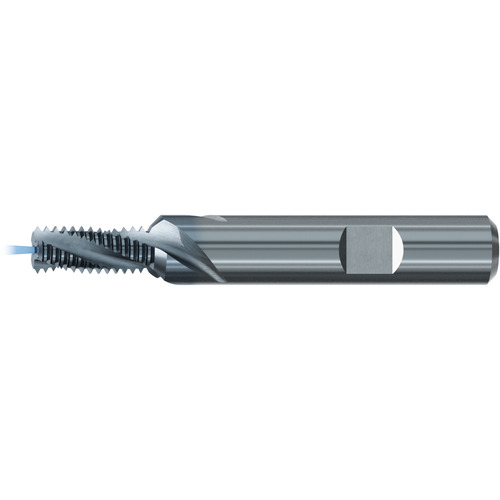

Thread Mill; 5/16″ - 18 × 10 mm Shank Dia. × 2.913″ OAL ; Carbide ; TiCN
| Thread Size | 5/16″ | Application | | External Thread Milling | Internal Thread Milling | |
| Threads per Inch (TPI) | 18 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Standard | UNC | Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.242″ | Flute Type | Spiral |
| Overall Length (OAL) | 2.913″ | Usable Length (LU) | 0.638″ |
| Flute Count (NOF) | 3 | Series/List # | GF335106 |
| Coolant Supply Property (CSP) | Coolant Thru | Length Group | 2xD |
| Shank Type | Weldon | Tool Type | Thread Mill |
| Coating | TiCN | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Remarks | • Combination countersink & thread mill. • Axial coolant fed channel for enhanced chip removal rates • This tool is for a specific pitch with corrected thread profile • Pre-drilled hole is required | Country of Origin | Germany |
Shipping Info
Package Weight
.990
