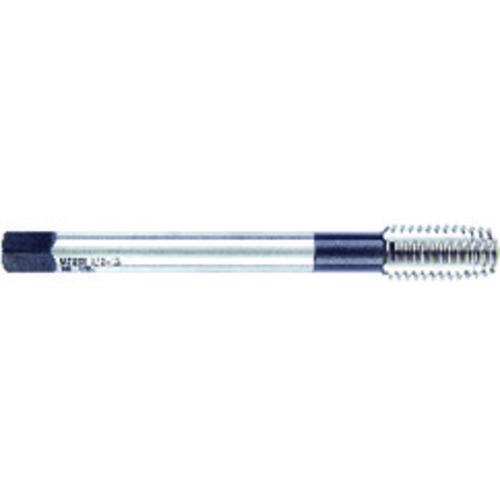

‎3/4-10 Dia. - GH7 - 6 FL - Premium HSS - TiN - Bottoming Thread Forming Tap Series/List #2106G

Item # MT4294804

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 94804

UPC #: 686125948047

Quantity Available

Tool Type

High Performance Tap

Coating

TiN

Thread Diameter Size (TDZ)

3/4″

Threads per Inch (TPI)

Overall Length (OAL)

‎4-59/64″

Chamfer

Bottom

Thread Cutting Part Length (THL)

1.181″

Measurement Type

Inch

Usable Length (LU)

1.181″

Series/List #

2106G

Flute Count (NOF)

Thread Size

‎3/4″ - 10

Thread Tolerance Class (TCTR)

Product Features

Remarks

• HPT†- High Performance Tap - Thread Froming - DIN Length• Recommended for a wide variety of ductile materials up to 28Rc hardness.• Thread Forming taps cold form rather than cut the threads. Advantages include no chips to dispose of, stronger high qaulity threads, increased tapping speeds, longer tap life and reduced tap breakage.• DIN Length - longer than standard USCTI length - provides extra reach in tapping applications.• ANSI Shank - made to standard Anmerican dimensions - fits standard tap holders.• Lube Grooves provide a path for lubrication and act as vents to relieve pressure in blind hole tapping.• Plug†Style (4 threads tapered) for through holes and blind holes with adequate depth. The longe taper lead is easier starting, requires less torque, produces less burr above teh mouth of the tapped hole and increase tool life.• Bottoming Style (2 threads tapered) for blind holes.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

3.12500

Package Width

.75000

Package Height

.75000

Package Weight

0.45
