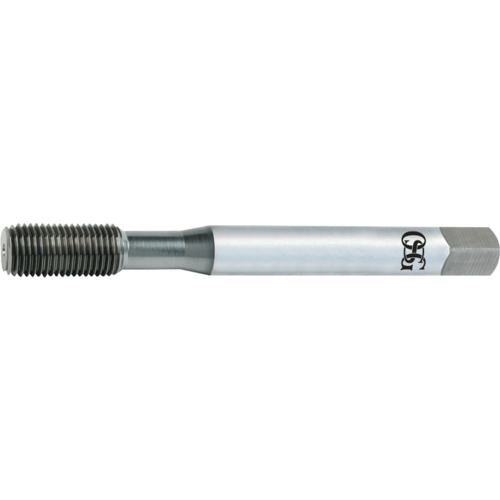

3/8-16 0 Fl H5 HSS-CO Forming Tap- TiN
| Tool Type | Forming Tap | Coating | TiN |
| Thread Diameter Size (TDZ) | 3/8″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2.93″ | Threads per Inch (TPI) | 16 |
| Thread Cutting Part Length (THL) | 1-1/4″ | Helix Angle | 0 Degrees |
| Usable Length (LU) | 1.252″ | Chamfer | 4.5P |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Measurement Type | Inch |
| Flute Count (NOF) | 0 | End Shape | Chamfer |
| Thread Tolerance Class (TCTR) | H5 | Cutting Edge Material | HSSCo |
| Thread Standard | UNC | Series/List # | 14001 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Aluminum / Non-Ferrous Materials | | Thread Size | 3/8″ - 16 |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
3.65000
Package Width
.60000
Package Height
.55000
Package Weight
.1450
