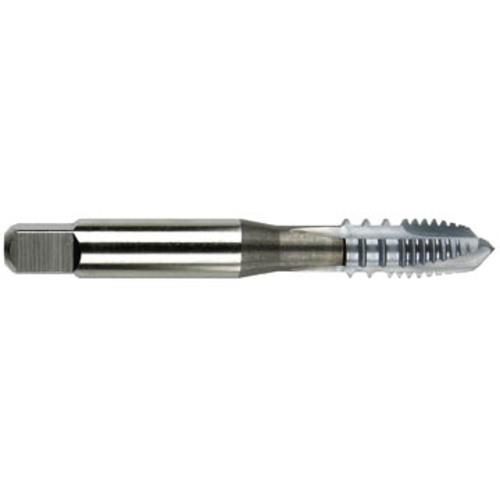

‎7/16-20 Dia. - GH3 - 3 FL - Premium - HSS - Bright - Plug - Spiral Point Tap Series/List #2092

‹ ›

‎7/16-20 Dia. - GH3 - 3 FL - Premium - HSS - Bright - Plug - Spiral Point Tap Series/List #2092

‎Spiral Point Tap; 7/16″ - 20 ; 3-5/32″ OAL ; 3 FL ; HSS-PM ; Uncoated ; H3 ; Series 2092

Item # MT3330027

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 30027

UPC #: 686125300272

Quantity Available

Thread Size

‎7/16″ - 20

Cutting Edge Material

HSS-PM

Thread Diameter Size (TDZ)

7/16″

Tool Type

High Performance Tap

Threads per Inch (TPI)

Applicable Material

| Aluminum / Non-Ferrous Materials |

Thread Tolerance Class (TCTR)

Style

Spiral Point

Usable Length (LU)

7/8″

Cutting Direction (HAND)

Right Hand

Overall Length (OAL)

‎3-5/32″

Coolant Supply Property (CSP)

External

Chamfer

Plug

Measurement Type

Inch

Coating

Uncoated

Series/List #

2092

Flute Count (NOF)

Product Features

Remarks

‎• HPT†- High Performance Tap - Aluminum• Recommended for all types of aluminum alloys. CrN coating especially recommended for high-silicon aluminum alloys.• Spiral†Point Taps are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.• Semi-Interrupted Thread (3-Flute taps only)• Plug†Style (3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

4.00000

Package Width

.50000

Package Height

.50000

Package Weight

0.11
