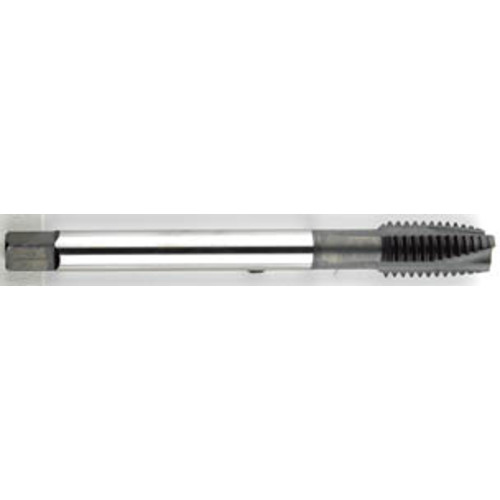

‎M20 × 2.5 Dia. - D7 - 4 FL - Premium - HSS - Black Oxide - Plug - Spiral Point Tap Series/List #2088M

‹ ›

‎M20 × 2.5 Dia. - D7 - 4 FL - Premium - HSS - Black Oxide - Plug - Spiral Point Tap Series/List #2088M

Item # MT4230588

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 30588

UPC #: 01031746

Quantity Available

Thread Size

M20 × 2.5

Cutting Edge Material

HSS-PM

Thread Diameter Size (TDZ)

M20

Tool Type

High Performance Tap

Thread Pitch (TP)

2.5 mm

Applicable Material

| Super-Alloys / Titanium |

Thread Tolerance Class (TCTR)

Style

Spiral Point

Usable Length (LU)

32 mm

Cutting Direction (HAND)

Right Hand

Overall Length (OAL)

140 mm

Coolant Supply Property (CSP)

External

Chamfer

Plug

Measurement Type

Metric

Coating

Black Oxide

Series/List #

2088M

Flute Count (NOF)

Product Features

Remarks

‎• HPT†- High Performance Tap - DIN Length• Recommended for steels, steel alloys, stainless steels, titanium alloys and a wide variety of materials up to 36Rc hardness.• Spiral†Point Taps are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds.• Plug†Style (3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

USA

Shipping Info

Package Length

3.13000

Package Width

.75000

Package Height

.75000

Package Weight

0.492
