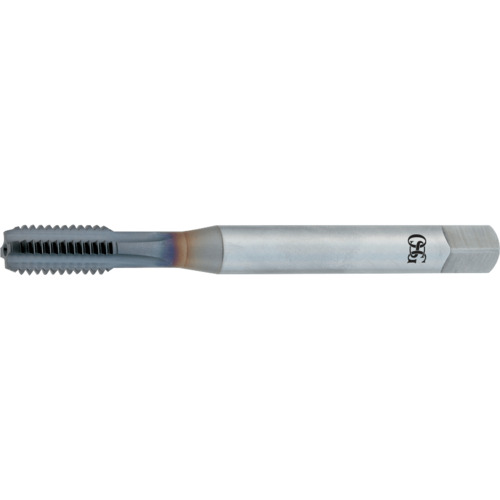

7/16-20 Dia. - H5-4 FL - VC10- TiCN - Bottoming - Straight Flute Tap
| Thread Diameter Size (TDZ) | 7/16″ | Thread Tolerance Class (TCTR) | H5 |
| Threads per Inch (TPI) | 20 | Chamfer | 1.5P-2P |
| Thread Standard | NF | Coating | TiCN |
| Overall Length (OAL) | 3-5/32″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-7/16″ | End Shape | Chamfer |
| Usable Length (LU) | 1.712″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.322″ | Shank Type | Round |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials | Series/List # | 10056 |
| Cutting Edge Material | HSS-PM | Thread Size | 7/16″ - 20 |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
5.00000
Package Width
.70000
Package Height
.65000
Package Weight
.0750
