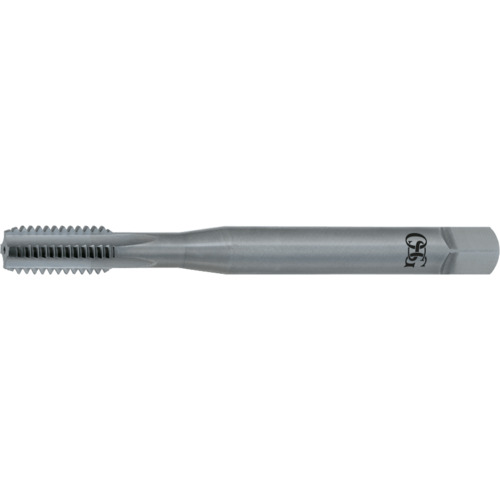

3/8-24 Dia.-2B-4 FL - Carbide - Bright - Bottoming - Straight Flute Tap
| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 24 | Chamfer | 1.5P-2P |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 2-15/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/4″ | Style | Bottoming |
| Usable Length (LU) | 1.251″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.38″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 10059 |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Thread Size | 3/8″ - 24 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.05000
Package Width
.65000
Package Height
.55000
Package Weight
0.135
