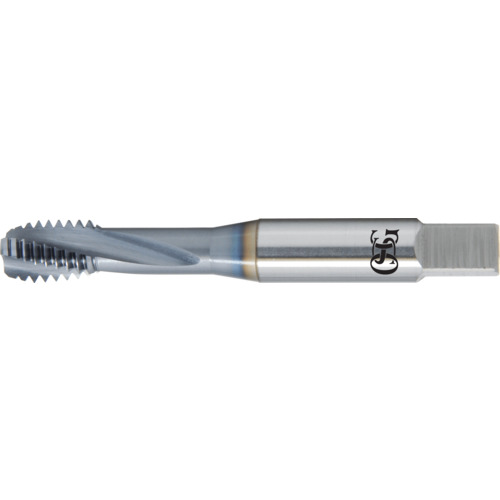

3/8-24 H6 3RX SEMI-BOT VC10 TICN
| Thread Diameter Size (TDZ) | 3/8″ | Thread Tolerance Class (TCTR) | H6 |
| Threads per Inch (TPI) | 24 | Tool Type | High Performance Tap |
| Thread Standard | NF | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 2-15/16″ | Coating | TiCN |
| Thread Cutting Part Length (THL) | 1-1/4″ | Flute Type | Spiral |
| Usable Length (LU) | 1.252″ | Style | Semi-Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.381″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 313 |
| Cutting Edge Material | HSS-PM |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
3.65000
Package Width
.60000
Package Height
.55000
Package Weight
.0850
