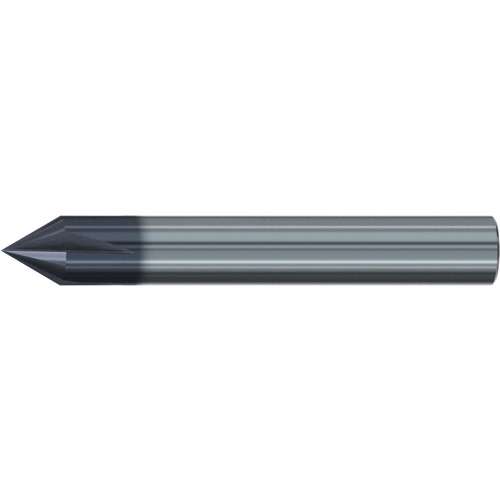

4MM CHAMF MILL 90D TIALN
| Applicable Material | | Universal Materials | | Coating | AlTiN |
| Application | | Finishing | | Grade | Sub-Micro Grain |
| Cutting Diameter (DC) | 4 mm | Shank Type | Round |
| Usable Length (LU) | 2 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Tool Type | Chamfer Mill |
| Flute Helix Angle (FHA) | 0 Degrees | Measurement Type | Metric |
| Overall Length (OAL) | 54 mm | Series/List # | 1715A |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Shank Size | 4 mm |
| Point Angle (SIG) | 90 Degrees | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Single / Double End | Single End |
Product Features
| Remarks | • Carbide chamfering end mill for chamfering edges and slots in almost all materials • 90° taper angle • Solid sub-micro grain carbide • Longer tool life with increased performance. | Country of Origin | Germany |
Shipping Info
Package Weight
0.022
