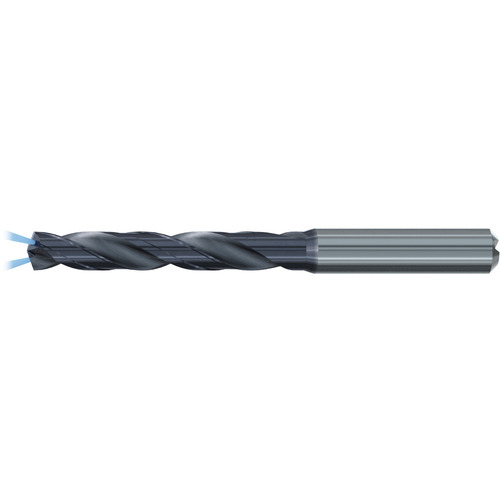

Solid Carbide Drill; 6.7 mm Dia. × 8 mm Shank Dia. × 91 mm OAL × 53 mm LCF ; 140 Degrees ; 5xD ; TiAlN ; Series TA219744
| Drill Bit Size / Cutting Diameter (DC) | 6.7 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.7 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Point Shape | Self Centering |
| Coating | TiAlN | Series/List # | MultiDRILL |
| Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | | Usable Length (LU) | 53 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Length Chip Flute (LCF) | 53 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 91 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 53 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.04
