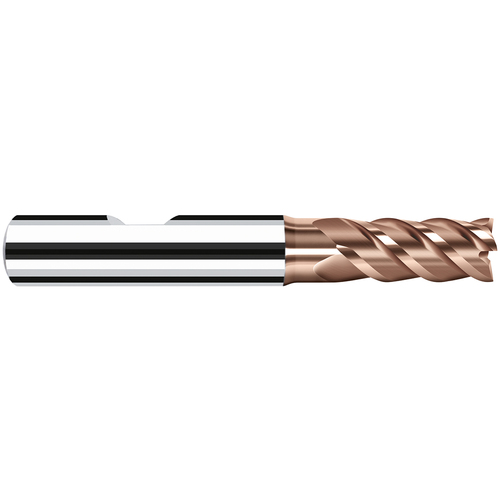

H8604300 HX-NVS 6MM 3 FLU
| Cutting Diameter (DC) | 6 mm | Corner Radius (RE) | 0.15 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | XA |
| Depth of Cut Maximum (APMX) | 13 mm | Neck Diameter (DN) | 5.5 mm |
| Overall Length (OAL) | 57 mm | Tool Type | Square Endmill |
| Cutting Edge Material | Carbide | Length Group | Standard with Short Neck |
| Coating | TiSiN | Flute Type | Spiral |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| End Shape | Corner Radius | Series/List # | HX-NVS |
| Applicable Material | | Steel | Hard Materials | | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.055
