1X1X3 1/4X6 5FL RH
5 Flute Endmill for Finishing, variable Pitch, Center cutting, 40° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs.

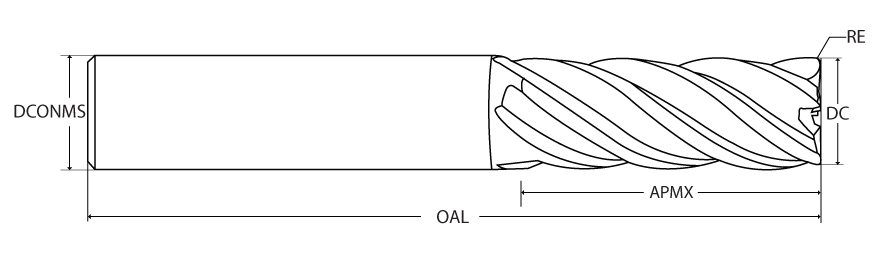

| Cutting Diameter (DC) | 1″ | Application | Finishing | HEM | Semi Finishing | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 1″ | Grade | H5003 Vulcan |
| Depth of Cut Maximum (APMX) | 3-1/4″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Length Group | 2 Extra Long |
| Coating | VARIANTIC | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 1″ |
| End Shape | Square | Measurement Type | Inch |
| Usable Length (LU) | 3-1/4″ | Series/List # | 577 |
| Applicable Material | | Cast Iron | Hard Materials | Hi Temp Alloys | Stainless Steel | Steel | | Shank Size (SS) | 1″ |
Product Features
| Family Description | 5 Flute Endmill for Finishing, variable Pitch, Center cutting, 40° helix angle, High Efficiency Milling. For Tool Steels, Duplex, PH Stainless & HRSAs. | ItemRemark | click here for cutting data |
| Country of Origin | USA |
