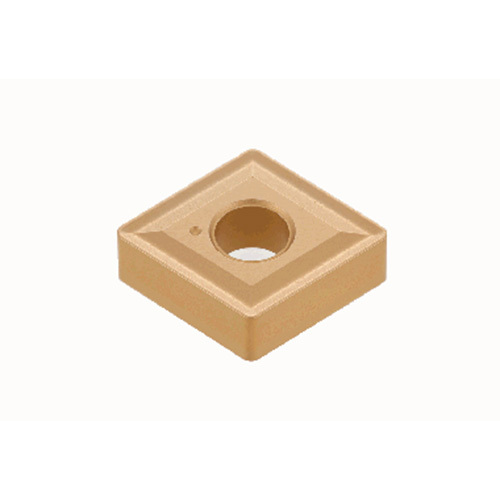

CNMG 543 T5125
Negative relief ang., M class, 80deg rhombic insert, all-round chipbreaker for medium cutting
| Applicable Material | | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0393″ |
| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.2362″ |
| Cutting Edge Length (L) | 0.634″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Insert Thickness (S) | 1/4″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 5/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Nega-AR |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T5125 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 1/4″ | Cutting Edge Effective Length (LE) | 0.539″ |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, all-round chipbreaker for medium cutting | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.487
