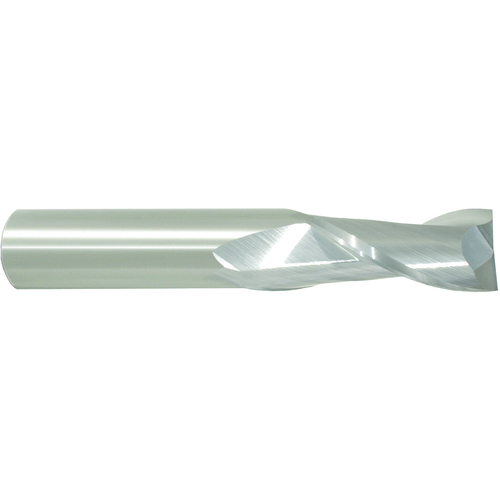

5/32″ × 3/16″ × 9/16″ × 2″ 2 Flute Single End Carbide Finishing Center Cutting End Mill-Uncoated Series/List #5944
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 5/32″ | Usable Length (LU) | 9/16″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 9/16″ | Tool Type | Single End |
| Overall Length (OAL) | 2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.1563″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5944 |
| End Shape | Square | Trade Name | SOLID MASTER |
Product Features
| Remarks | •Solid Carbide 2-Flute Single End Mills •Micrograin Regular Length | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
3.10000
Package Width
.40000
Package Weight
0.03
