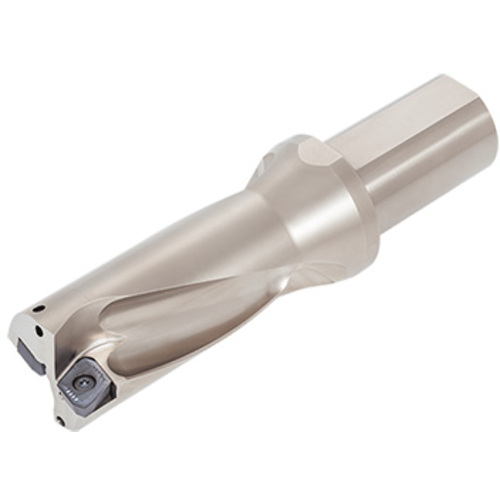

TDX450F40-2
TungDrillTwisted Indexable insert drills, L/D=2, Flat cotter

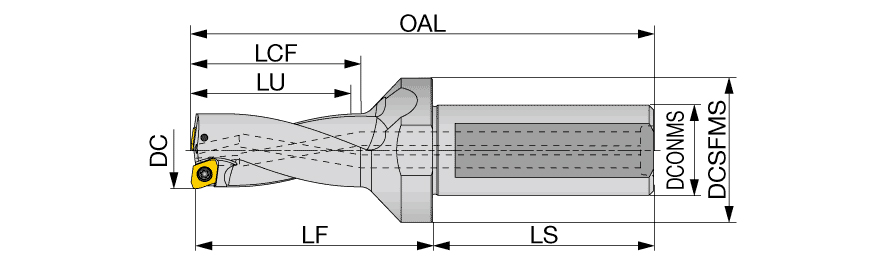

| Cutting Diameter (DC) | 45 mm | Overall Length (OAL) | 198.6 mm |
| Usable Length (LU) | 91.6 mm | Cutting Diameter Minimum (DCN) | 45 mm |
| Application | | General Drilling | | Cutting Diameter Maximum (DCX) | 45 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Flange Diameter (DF) | 55 mm |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 1.56 mm |
| Shank Length (LS) | 69 mm | Measurement Type | Metric |
| Length Chip Flute (LCF) | 96.6 mm | Master Insert Identification (MIID) | XPMT150512R-DJ |
| Functional Length (LF) | 128 mm | Body Material | Steel |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills, L/D=2, Flat cotter | Country of Origin | JAPAN |
Shipping Info
Package Weight
3.832
