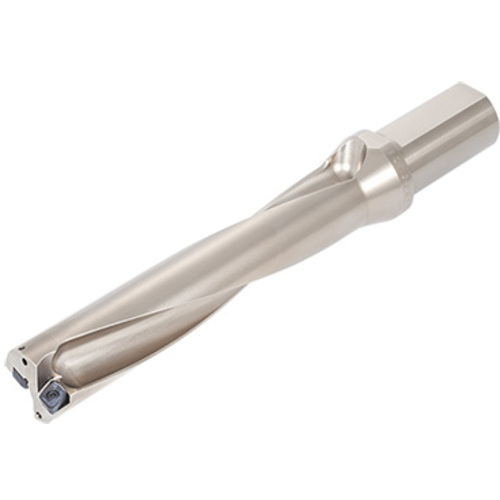

TDX135F20-5
TungDrillTwisted Indexable insert drills, L/D=5, Flat cotter
| Cutting Diameter (DC) | 13.5 mm | Overall Length (OAL) | 132.9 mm |
| Usable Length (LU) | 67.9 mm | Cutting Diameter Minimum (DCN) | 13.5 mm |
| Application | | General Drilling | | Cutting Diameter Maximum (DCX) | 13.5 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Flange Diameter (DF) | 25 mm |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.39 mm |
| Shank Length (LS) | 49 mm | Measurement Type | Metric |
| Length Chip Flute (LCF) | 70.9 mm | Master Insert Identification (MIID) | XPMT040104R-DJ |
| Functional Length (LF) | 83.5 mm | Body Material | Steel |
Product Features
| Family Description | TungDrillTwisted Indexable insert drills, L/D=5, Flat cotter | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.483
