XPMT040104R-DW AH740
TungDrill insert with DW chipbreaker for high feed drilling of steel

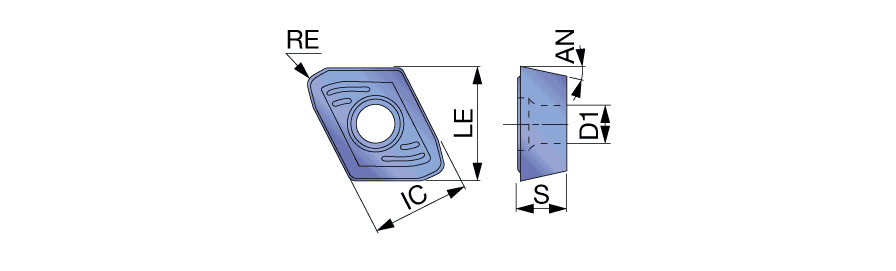

| Cutting Edge Length (L) | 0.169″ | Grade | AH740 |
| Insert Width (W1) | 0.177″ | Application | | General Drilling | |
| Insert Thickness (S) | 0.063″ | Applicable Material | | Steel | |
| Inscribed Circle Diameter (IC) | 0.169″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Tool Type | Indexable drilling inserts |
| Fixing Hole Diameter (D1) | 0.09″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | TungDrill insert with DW chipbreaker for high feed drilling of steel | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.035
