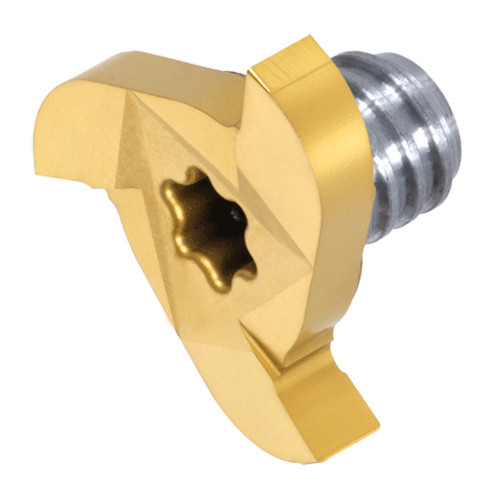

VST157W3.17R020-3S06 GH130
Slotting, 3, 4, 6 flutes, for slotting
| Application | | Slot Milling | | Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Diameter (DC) | 0.6181″ | Grade | GH130 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Coating | TiCN |
| Flute Count (NOF) | 3 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.0079″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 0.6181″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1/8″ | Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 1/8″ | Body Material | Carbide |
| Functional Length (LF) | 0.13″ |
Product Features
| Family Description | Slotting, 3, 4, 6 flutes, for slotting | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.064
