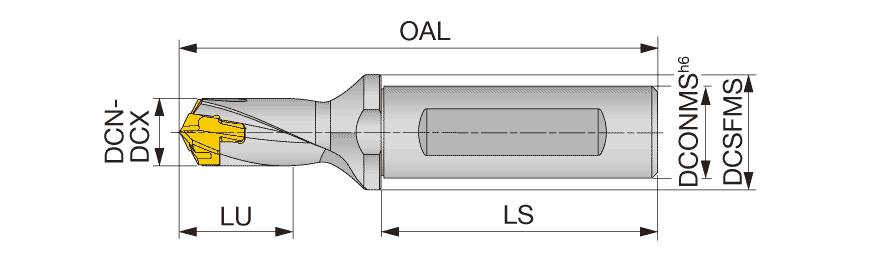

| Usable Length (LU) | 1.278″ | Shank Length (LS) | 2.205″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Master Insert Identification (MIID) | DMP190 |
| Insert Seat Size Code (SSC) | 19 | Point Length (PL) | 0.113″ |
| Cutting Diameter Minimum (DCN) | 0.748″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.783″ | Flange Diameter (DF) | 1.26″ |
| Overall Length (OAL) | 4.508″ |
Product Features

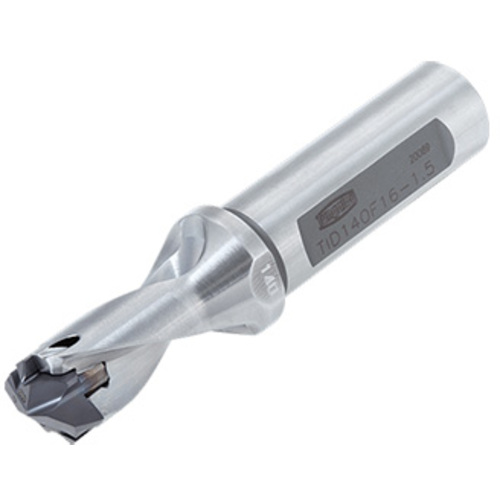

| Family Description | DrillMeister Indexable head drill with flanged shank | Country of Origin | S.Korea |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
