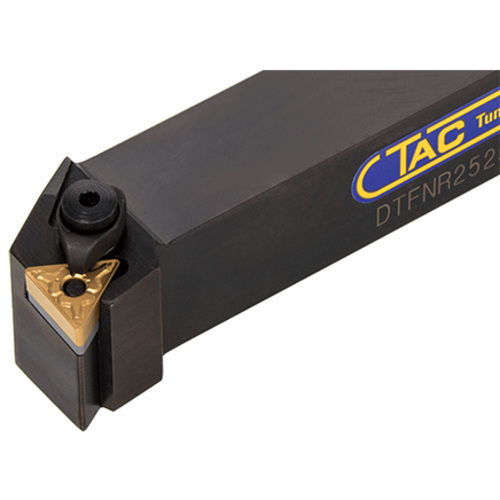

DTFNL2525M16
One-Double toolholder for facing with 91deg approach angle, negative triangle inserts

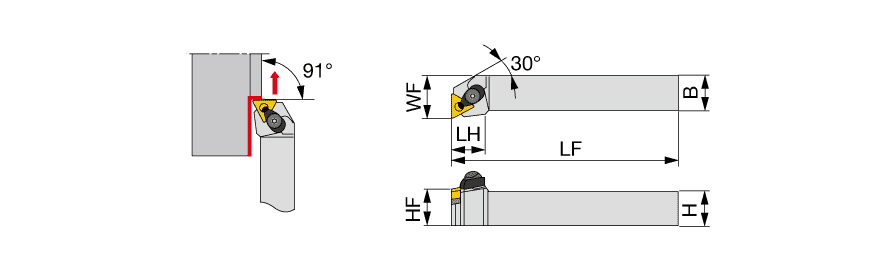

| Shank Height (H) | 25 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 25 mm | Master Insert Identification (MIID) | TNMG160408 |
| Overall Length (OAL) | 150 mm | Application | | For Triangular insert | |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 23 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
Product Features
| Family Description | One-Double toolholder for facing with 91deg approach angle, negative triangle inserts | Country of Origin | JAPAN |
| Remarks | Except for 57 type chipbreaker inserts |
Shipping Info
Package Weight
1.678
