A05F-SEZPL03-D065

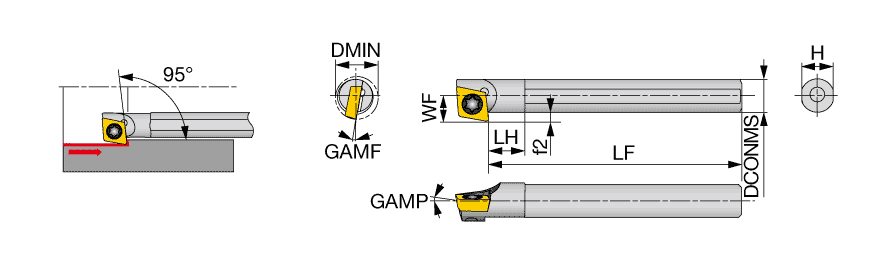

| Connection Diameter Machine Side (DCONMS) | 5 mm | Application | | For 75deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 80 mm | Frontal Edge Angle | 3 |
| Head Length (LH) | 5 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 4.8 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 3.7 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | EPGT03X102 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 6.5 mm | Measurement Type | Metric |
Product Features
| Family Description | Screw-on boring bar, for posi 75 deg rhombic insert with 11 deg clearance | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the right hand toolholders (SEZPR** type), and the left hand insert (L) is used forthe left hand toolholders (SEZPL** type). Torque:Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.073
