C5EM14X60

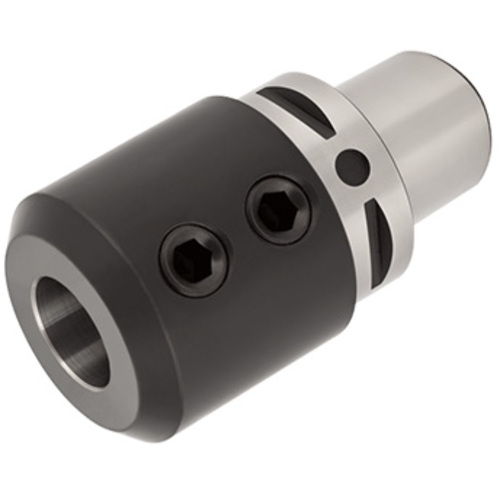

TungCap weldon endmill holders (DIN1835 Form B)
| Shank Type | Weldon | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 14 mm | Shank Size (SS) | 50. |
| Body Diameter (BD) | 44 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Overall Length (OAL) | 60 mm | Body Length (LB) | 40 mm |
| Application | | Face contact interface | | Body Material | Steel |
Product Features
| Family Description | TungCap weldon endmill holders (DIN1835 Form B) | Country of Origin | TURKEY |
| Remarks | Applicable for 7 MPa coolant |
Shipping Info
Package Weight
0.000
