DIN6987150EM50X125

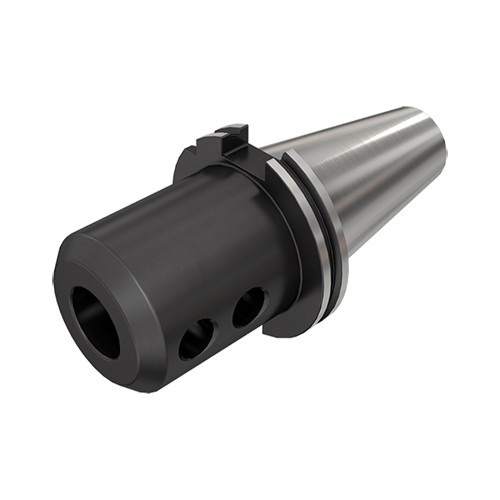

Screw locking endmill holders with DIN69871 shank

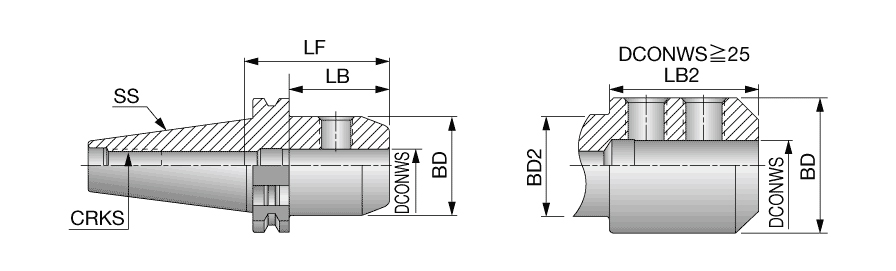

| Shank Type | Weldon | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 50 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Body Diameter (BD) | 98 mm | Shank Size (SS) | 50. |
| Body Diameter_2 (BD_2) | 79.9 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 6.8 kg | Body Length (LB) | 105.9 mm |
| Overall Length (OAL) | 125 mm | Body Length_2 (LB_2) | 90 mm |
| Application | | Tapered shape interface | | Body Material | Steel |
Product Features
| Family Description | Screw locking endmill holders with DIN69871 shank | Country of Origin | TURKEY |
| Remarks | Add B for coolant through the flange. |
Shipping Info
Package Weight
15.653
