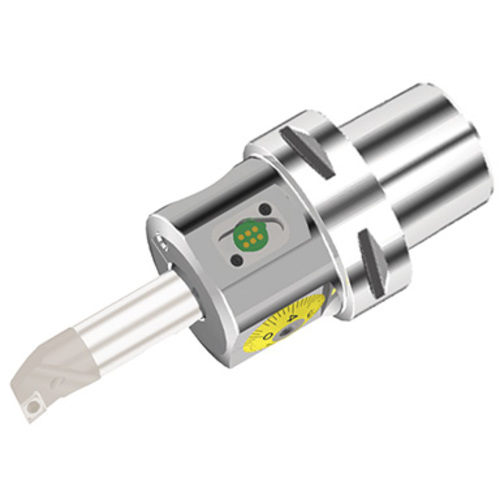

PSC40-FBHO-DE-1665
Digital Fine boring heads for dia 9.75 - 88.1 mm
| Application | | SwissBore tools | | Master Insert Identification (MIID) | 88.1 mm |
| Cutting Diameter Minimum (DCN) | 9.75 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 88.1 mm | Body Material | Steel |
| Functional Length (LF) | 65 mm |
Product Features
| Family Description | Digital Fine boring heads for dia 9.75 - 88.1 mm | Country of Origin | SWITZERLAND |
| Remarks | DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder. For DCN and DCX, click on "More Info". Boring bars should be ordered individualy. Radius adjustment range: 2.7 mm Applicable for 3 MPa pressure coolant. |
Shipping Info
Package Weight
2.028
Related Documentation

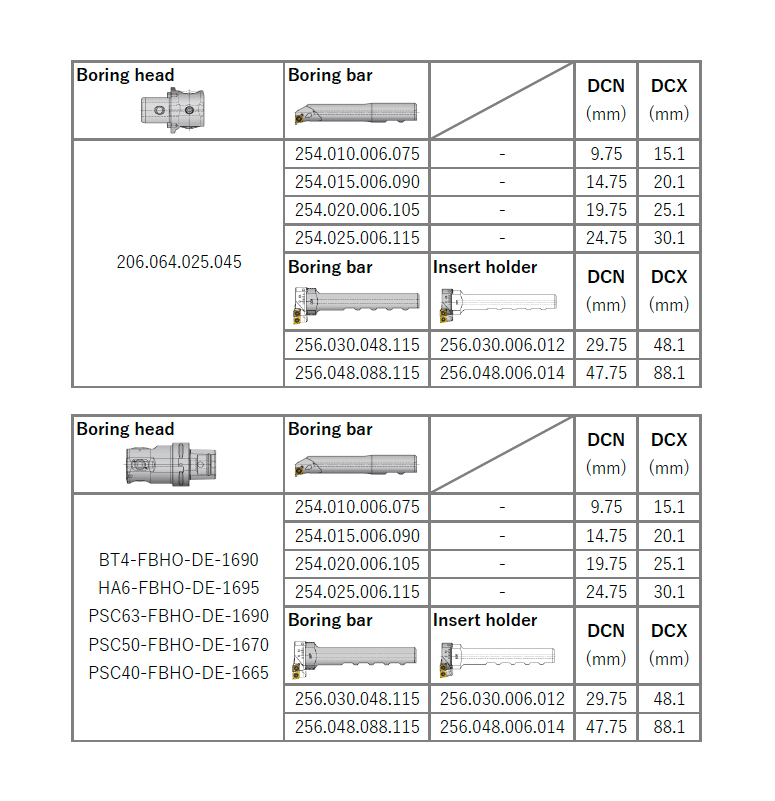

DCN and DCX vary depending on the assembly of boring head, boring bar and insert holder.
