TSW06R400-U037

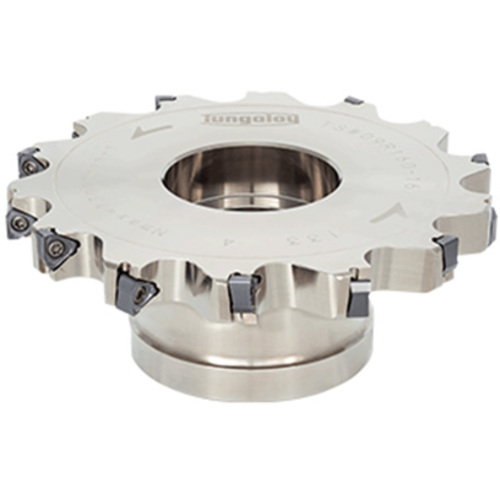

Radial drive type slot milling cutter

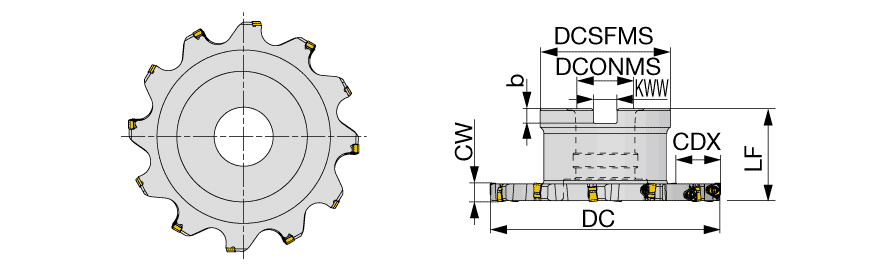

| Cutting Diameter (DC) | 4″ | Application | | Slot Milling | |
| Cutting Width (CW) | 3/8″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.976″ | Tool Type | Double-sided slotting cutters |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Item Count (CICT) | 10 |
| Overall Length (OAL) | 1.969″ | Functional Length (LF) | 1.969″ |
| Usable Length (LU) | 1.83 lbs | Master Insert Identification (MIID) | WNGU060308TN-MJ |
Product Features
| Family Description | Radial drive type slot milling cutter | Country of Origin | Japan |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.265
