SSG03R080-3
Side cutter for thin slitting and cutting off

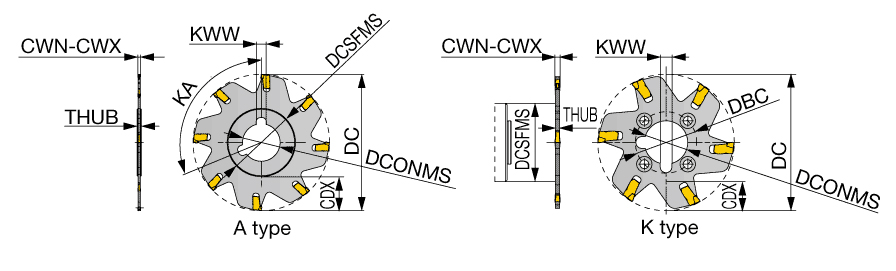

| Cutting Diameter (DC) | 3.1496″ | Cutting Width Maximum (CWX) | 0.138″ |
| Cutting Item Count (CICT) | 6 | Cutting Width Minimum (CWN) | 0.106″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Overall Length (OAL) | 0.122″ |
| Cutting Depth Maximum (CDX) | 0.63″ | Master Insert Identification (MIID) | SSM3*N/SSS3*N |
| Connection Diameter Machine Side (DCONMS) | 1″ | Application | | Slot Milling | |
| Hub Thickness (THUB) | 0.094″ | Measurement Type | Inch |
| Cutting Width (CW) | 0.122″ | Body Material | Steel |
Product Features
| Family Description | Side cutter for thin slitting and cutting off | Country of Origin | Israel |
| Remarks | For the combination of arbors / attachments, click on "More Info". |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.265
Related Documentation

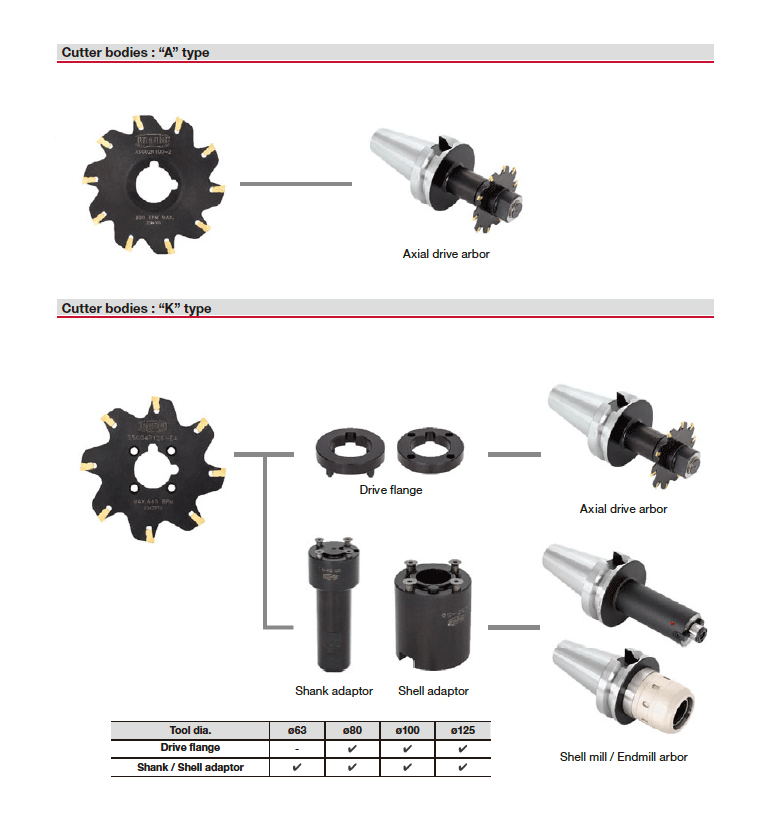

[Combination of arbors / attachments] @(1) A-type disk cutters are without clamping holes on the hub and can be mounted only by using axial drive arbors. @(2) K-type disk cutters are with clamping holes on the hub and can be mounted by using intermediate shanks or shell adaptors, making it possible to use endmills / shell mill arbors.
