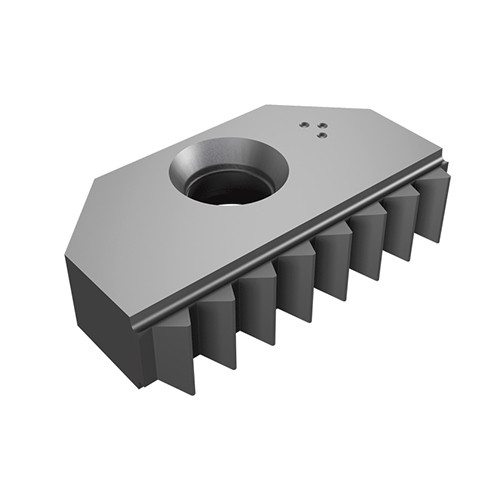

MT TIDC 1181 14W AC22
External & Internal Whitworth (BSW, BSF, BSP) Full Profile Thread Milling Inserts for Fittings and Pipe Couplings
| Thread Pitch (TP) | 1.814 mm | Grade | AC22 |
| Threads per Inch (TPI) | 14 Threads/" | Shape | 90° Rectangular |
| Insert Length (INSL) | 1.181″ | Cutting Edge Material | Carbide |
| Insert Width (W1) | 0.657″ | Coating | TiAlN |
| Insert Thickness Total (S1) | 0.14″ | Measurement Type | Inch |
| Application | | External Thread Milling | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | WH55 |
Product Features
| Family Description | External & Internal Whitworth (BSW, BSF, BSP) Full Profile Thread Milling Inserts for Fittings and Pipe Couplings | Country of Origin | Israel |
Shipping Info
Package Weight
0.085
