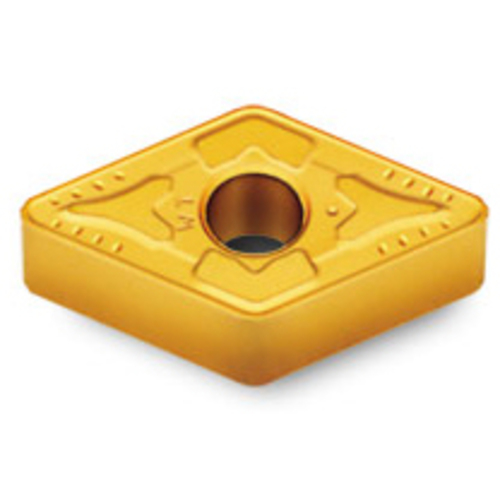

DNMG433WT TT8115B

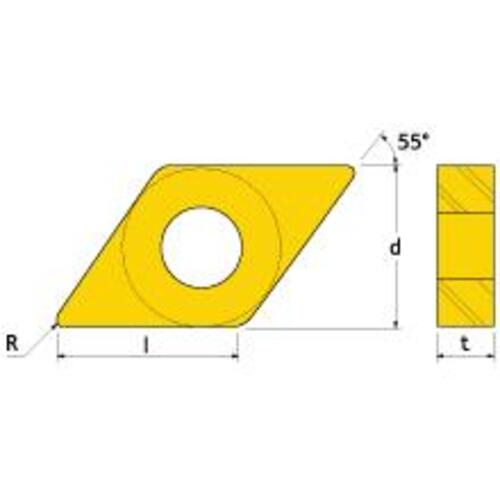

| Insert Style | DNMG | Max. Turning Feed (ft(max)) | 0.024″ |
| Corner Radius (RE) | 0.047″ | Number of Cutting Edges | 4 |
| Insert Size | 433 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.61″ | Quantity | 10 |
| Insert Thickness (S) | 0.187″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | 60° Triangle |
| Insert Included Angle (EPSR) | 55 Degrees | Series/List # | ISOI |
| Min D.O.C. | 0.039″ | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.197″ | Model No | 8866423 |
| Min. Turning Feed (ft(min)) | 0.006″ |
Product Features
| Country of Origin | Usa |
Shipping Info
LocalField10
0
Package Weight
0.025
