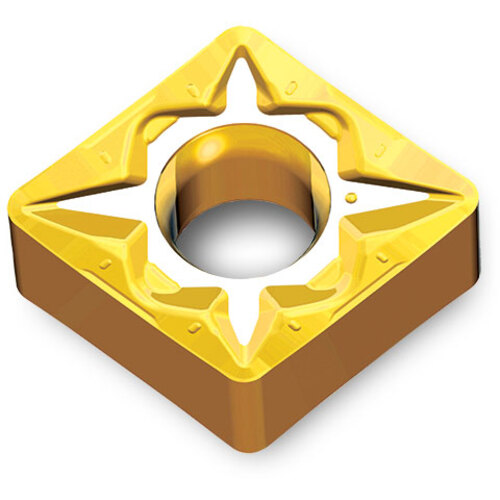

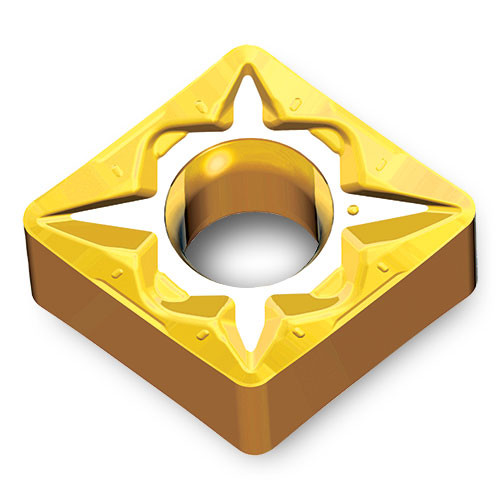

CNMG331FM CT3000
Turning Insert; 60 Triangle ; 0.382″ Length × 3/8″ IC × 0.016″ Corner Radius ; CT3000 ; Cermet
| Insert Style | CNMG | Min. Turning Feed (ft(min)) | 0.003″ |
| Corner Radius (RE) | 0.016″ | Max. Turning Feed (ft(max)) | 0.012″ |
| Insert Size | 331 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 0.382″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Insert Included Angle (EPSR) | 80 Degrees | Shape | 60° Triangle |
| Cutting Edge Material | Cermet | Series/List # | CNMG 331-FM |
| Grade | CT3000 | Body Material | Carbide |
| Min D.O.C. | 0.01″ | Model No | 8866423 |
| Depth of Cut Maximum (APMX) | 0.08″ |
Product Features
| Country of Origin | S.Korea |
