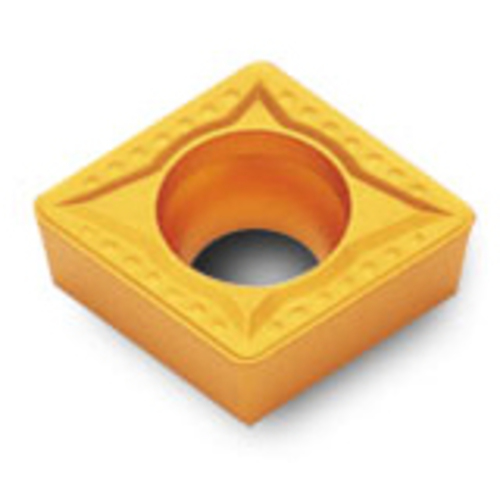

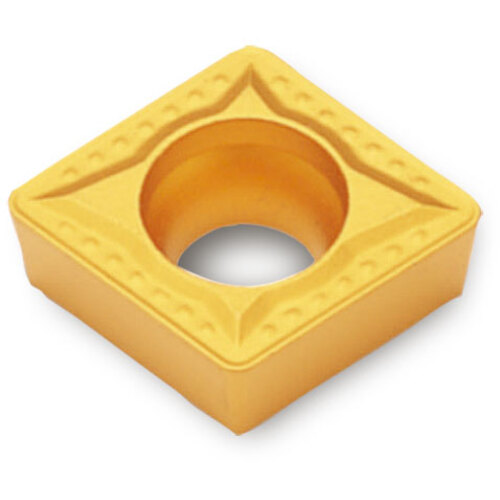

CCMT432MT TT7025
| Insert Style | CCMT | Min. Turning Feed (ft(min)) | 0.005″ |
| Corner Radius (RE) | 0.031″ | Max. Turning Feed (ft(max)) | 0.012″ |
| Insert Size | 432 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 80 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Grade | TT7025 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.217″ | Body Material | Carbide |
| Min D.O.C. | 0.051″ | Model No | 8866423 |
| Depth of Cut Maximum (APMX) | 0.197″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.020
