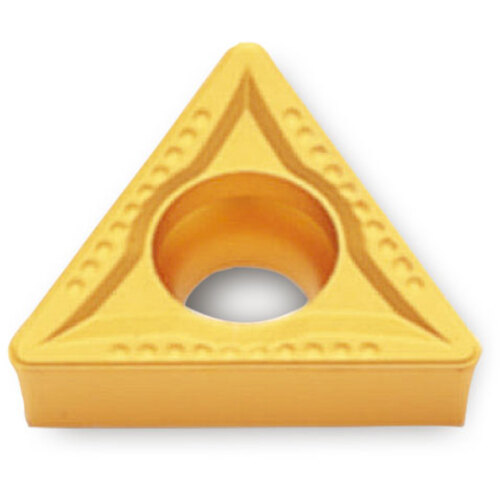

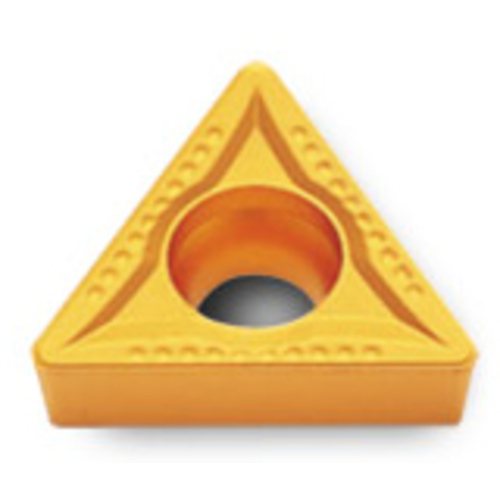

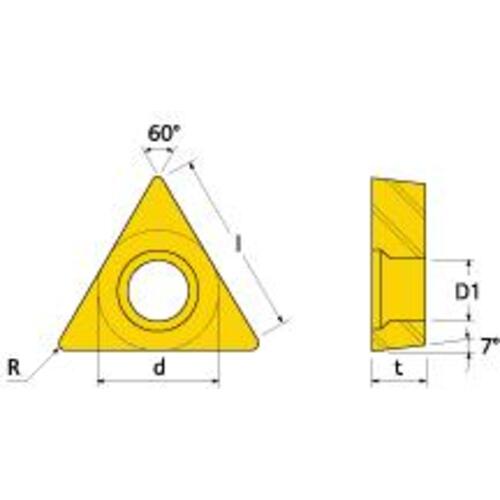

TCMT732MT TT5100
| Insert Style | TCMT | Depth of Cut Maximum (APMX) | 0.079″ |
| Corner Radius (RE) | 0.031″ | Min. Turning Feed (ft(min)) | 0.005″ |
| Insert Size | 732 | Max. Turning Feed (ft(max)) | 0.012″ |
| Cutting Edge Length (L) | 0.379″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094″ | Number of Cutting Edges | 3 |
| Inscribed Circle Diameter (IC) | 0.219″ | Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 60 Degrees | Quantity | 10 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Shape | 60° Triangle |
| Grade | TT5100 | Series/List # | ISOI |
| Fixing Hole Diameter (D1) | 0.098″ | Body Material | Carbide |
| Min D.O.C. | 0.031″ | Model No | 8866423 |
Product Features
| Country of Origin | Usa |
Shipping Info
LocalField10
0
Package Weight
0.005
