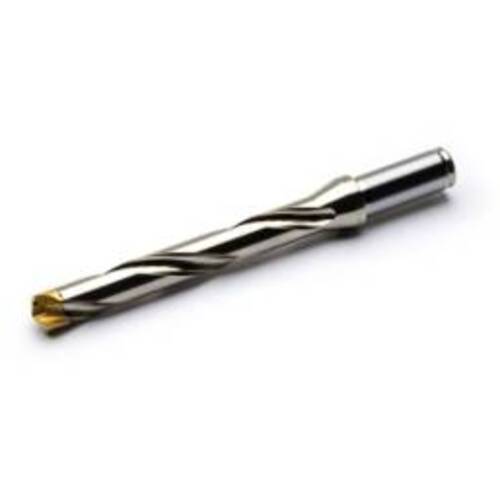

O CROWNLOC DRILL BODIES - MODEL # SD107-17.00/17.99-130-0750R7; 8.366 OVERALL LENGTH; WELDON SHANK; 0.75 SHANK DIAMETER
| Cutting Diameter (DC) | 16.5 mm | Protruding Length (LPR) | 144.5 mm |
| Usable Length (LU) | 130 mm | Functional Length (LF) | 162.5 mm |
| Length Group | 7D | Overall Length (OAL) | 212.5 mm |
| Shank Type | Weldon | Shank Length (LS) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 19.05 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Minimum (DCN) | 17 mm | Cutting Item Count (CICT) | 1 |
| Cutting Diameter Maximum (DCX) | 17.99 mm | Decimal Equivalent | 0.6496″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.7320
