QR0325098N6R02

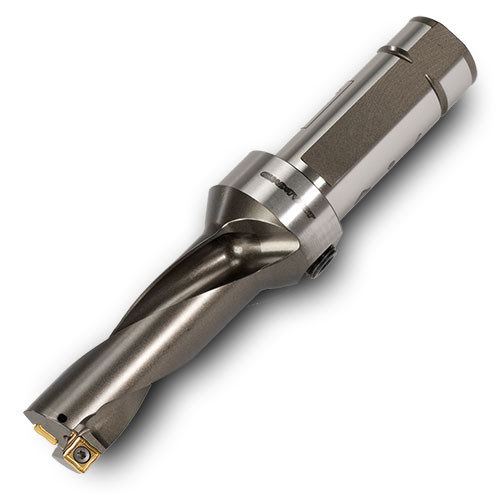

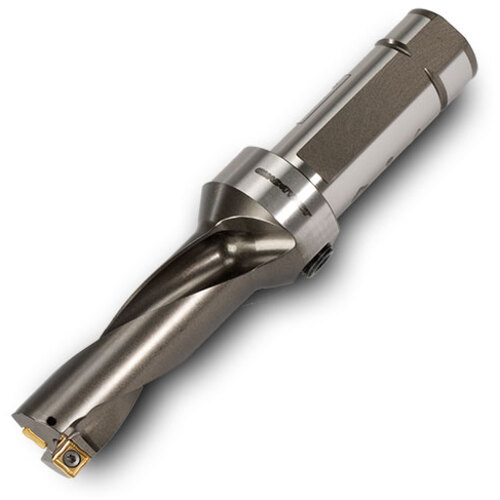

Indexable Insert Drill; 1.281″ Dia. × 3.84″ LU × 1-1/4″ Shank Dia. × 8.43″ OAL ; 3D ; Steel

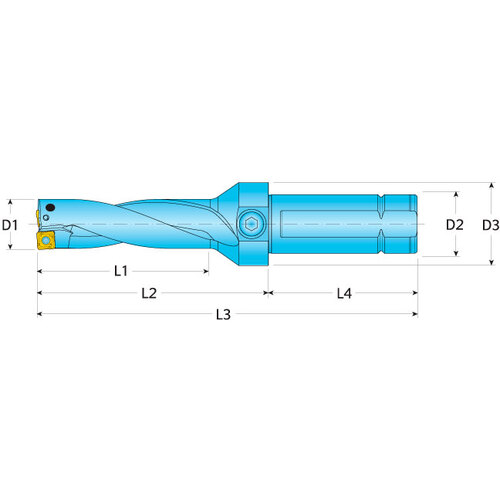

| Cutting Diameter (DC) | 1.281″ | Cutting Item Count (CICT) | 2 |
| Usable Length (LU) | 3.84″ | Cutting Diameter Maximum (DCX) | 1.343″ |
| Application | | Drill Mill | Drilling | | Flange Diameter (DF) | 1.772″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Point Length (PL) | 0.066″ |
| Shank Size (SS) | 1″ | Measurement Type | Inch |
| Tool Type | Indexable Drill | Length Group | 3D |
| Shank Length (LS) | 3.16″ | Effective No. of Teeth | 1 |
| Functional Length (LF) | 5.28″ | Body Material | Steel |
| Overall Length (OAL) | 8.43″ | Decimal Equivalent | 1.281″ |
Product Features
| Family Description | Extended Length Shank For Maximum Clamping Surface Ideal For Lathe Applications Note: Brass coolant fitting should be ordered separately | Country of Origin | S.Korea |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.204
