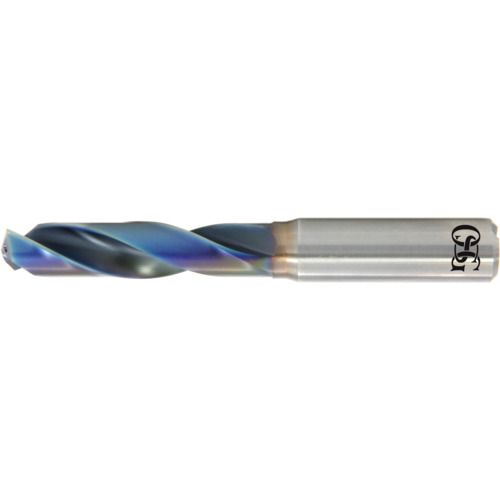

1.3mm Carbide 3xD HY-PRO®, CARB Drill
| Drill Bit Size / Cutting Diameter (DC) | 1.3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.3 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Flute Type | Spiral |
| Coating | EgiAs | Measurement Type | Metric |
| Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | | Series/List # | HP243 |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 8 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 8 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 35 mm |
| Functional Length (LF) | 8 mm | Flute Count (NOF) | 2 |
| Shape | Solid Carbide | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
1.95000
Package Width
.50000
Package Height
.40000
Package Weight
0.0100
