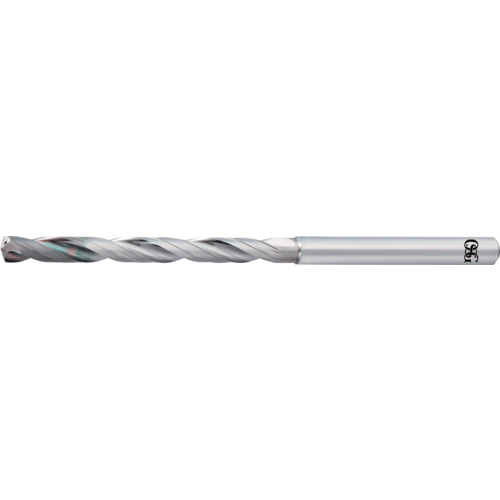

8.4 mm Dia. × 10 mm Shank × 92 mm Flute Length × 150 mm OAL, 8xD, EgiAs, 2 Flute, Solid Carbide Drill
| Drill Bit Size / Cutting Diameter (DC) | 8.4 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.4 mm | Tool Type | Taper Drill |
| Length Group | 8xD | Measurement Type | Metric |
| Coating | EgiAs | Series/List # | 6520 |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Usable Length (LU) | 92 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 92 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 150 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Functional Length (LF) | 92 mm | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | JP |
