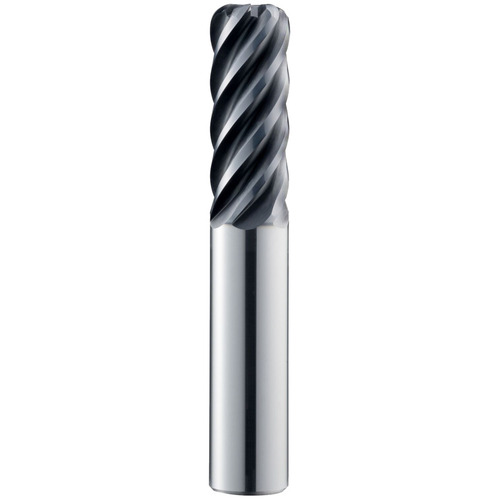

10.0 End Mill 6FL 2.00R TX - T-CARB 10x10x22x75
Corner Radius End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 75 mm OAL ; 6 FL ; Carbide ; AlTiN ; Series T-CARB
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 22 mm | Usable Length (LU) | 53 mm |
| Overall Length (OAL) | 75 mm | Corner Radius (RE) | 2 mm |
| Cutting Edge Material | Carbide | Flute Type | Spiral |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.3937″ |
| Flute Helix Angle (FHA) | 41 Degrees | Series/List # | T-CARB |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.184
