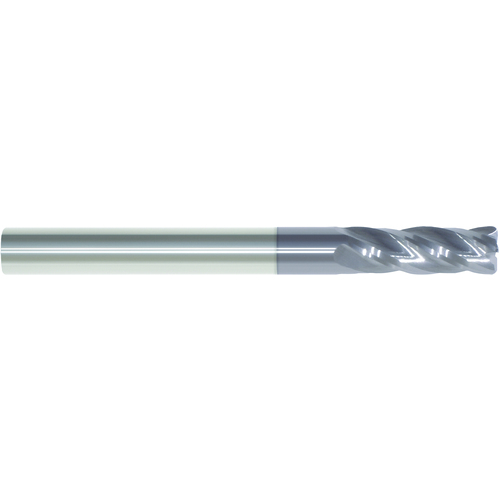

5/16″ × 5/16″ × 13/16″ × 2 1/2″ 0.0200″ C/R 4 Flute Single End Carbide Finishing End Mill-ALTiN Series/List #5968T
| Cutting Diameter (DC) | 5/16″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Corner Radius (RE) | 0.02″ |
| Depth of Cut Maximum (APMX) | 13/16″ | Tool Type | Single End |
| Overall Length (OAL) | 2-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.3125″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Series/List # | 5968T |
| Usable Length (LU) | 13/16″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.37500
Package Weight
0.098
