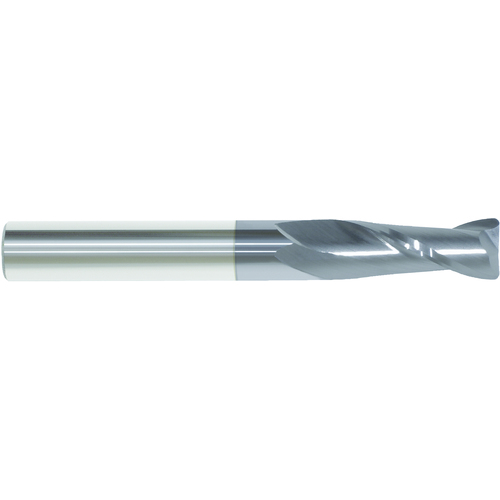

3/8″ × 3/8″ × 1″ × 2 1/2″ 0.0450″ C/R 2 Flute Single End Carbide Finishing End Mill-ALTiN Series/List #5967T
| Cutting Diameter (DC) | 3/8″ | Application | Finishing |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 0.045″ |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Single End |
| Overall Length (OAL) | 2-1/2″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.375″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5967T |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.045″ |
| Usable Length (LU) | 1″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.015
