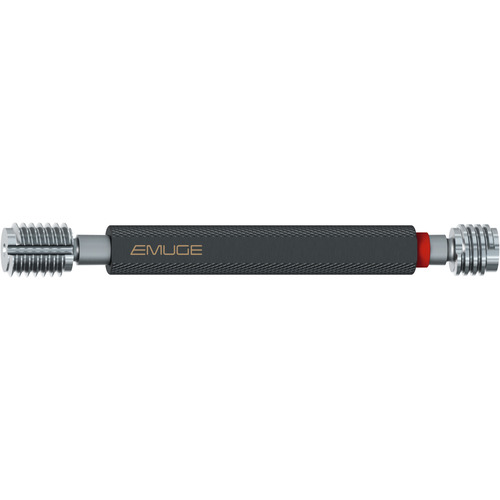

Thread Plug Gage with Handle; Go/No Go; M3.5x0.6; Metric; 6H; DIN 2280
| Type | Thread Plug Gage with Handle | Classification | 6H |
| Go / No Go | Go/No Go | Certification | Short form certificate included |
| Thread Size | M3.5x0.6 | Single or Double End | Double End |
| Thread Type | Metric | Dimension Standards | DIN 2280 |
| Pitch | 0.6 |
Product Features
| Remarks | • A cleansing channel is ground into the GO side to eliminate thread damage from dirt and grime. • Reduced thread start diameter construction for easy insertion | Country of Origin | Germany |
Shipping Info
Package Weight
0.033
